Motogadget – Mo.unit Blue

Motogadget – mo.unit blue

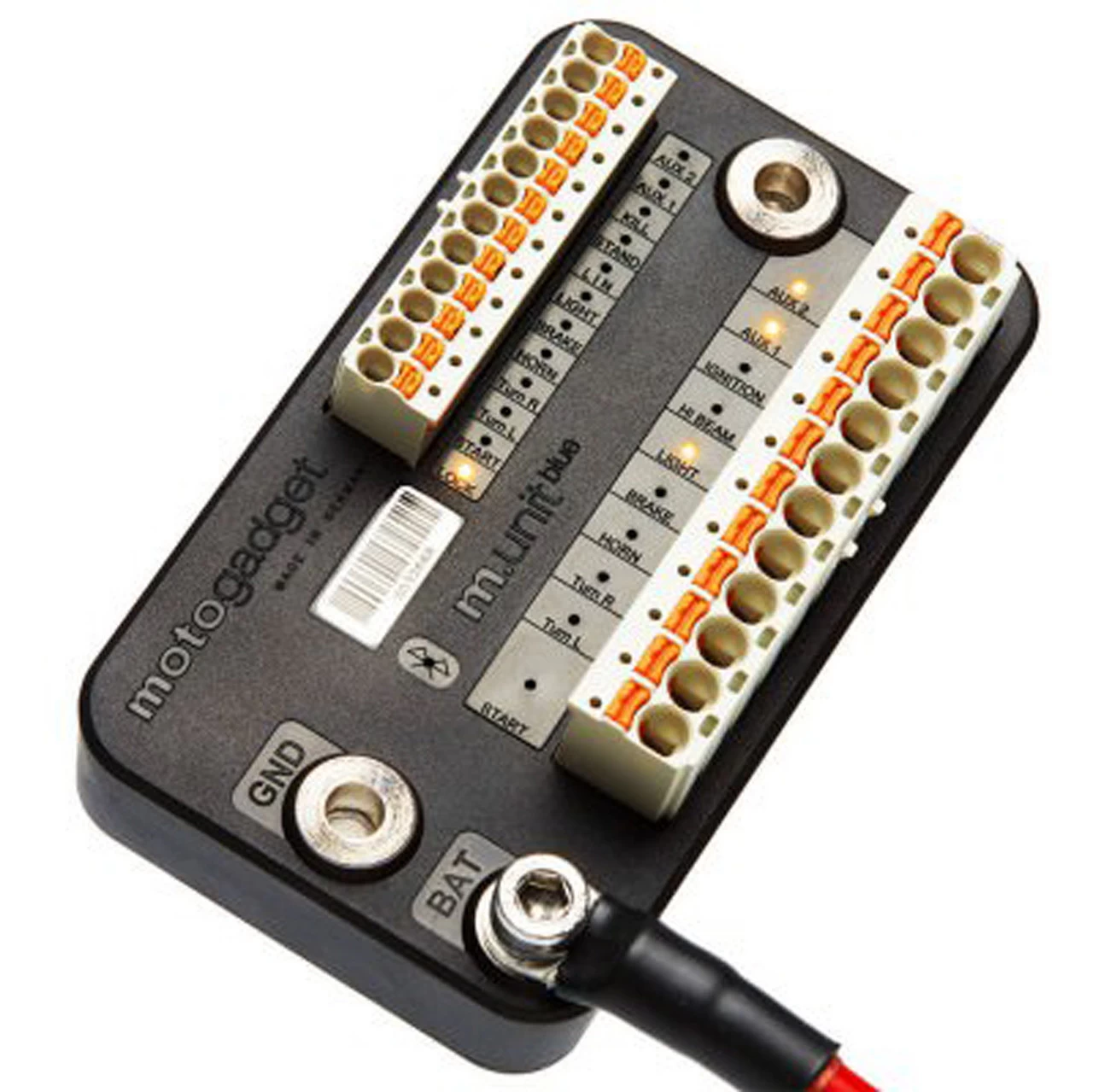

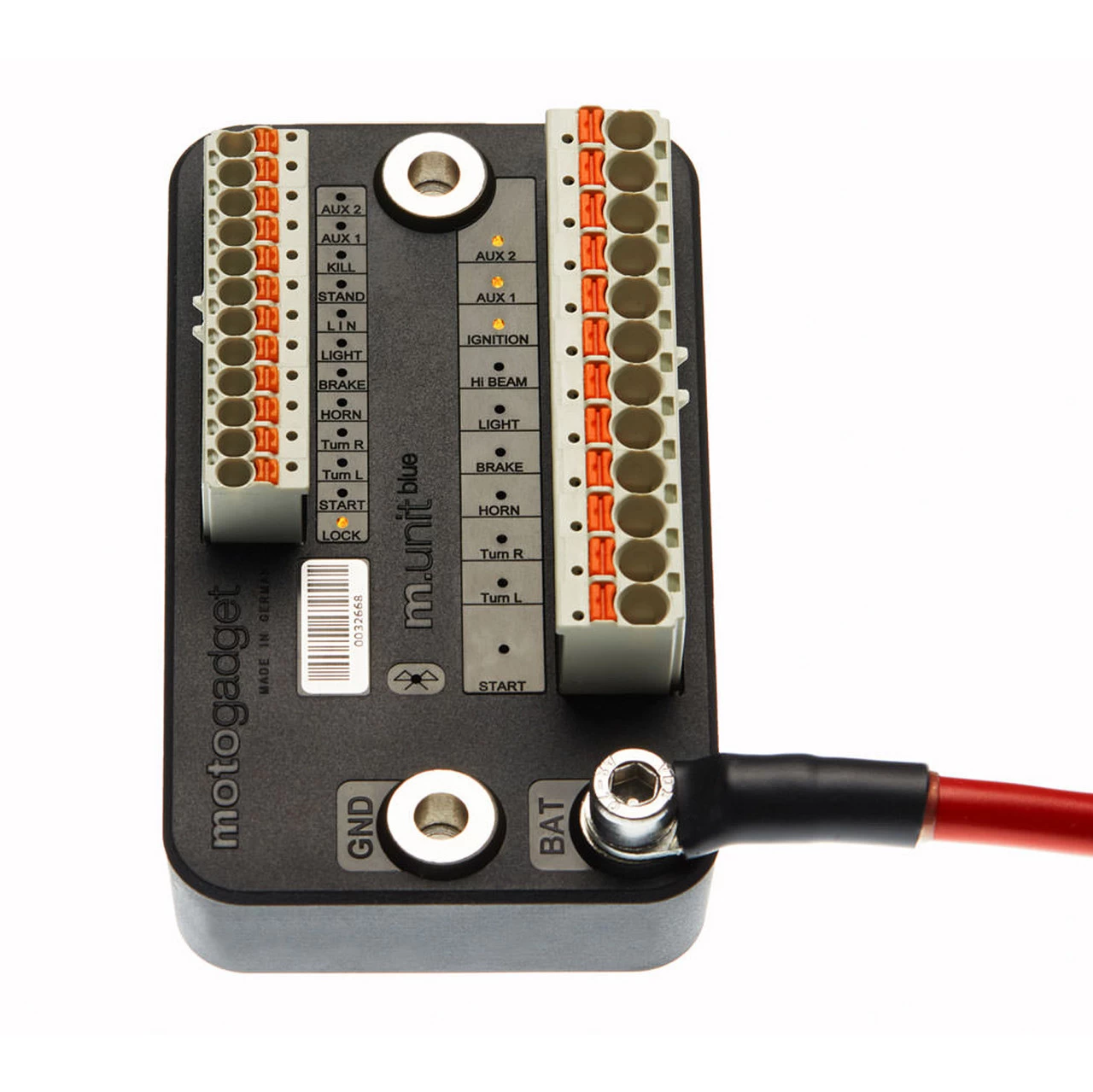

Motogadget’s digital masterpiece, the mo.unit blue, is a control unit unlike any other. It serves as the heart of your entire bike’s electrical system, allowing for individual configuration and switching all necessary components on the bike while simultaneously performing the duties of electrical fuses. The mo.unit blue can be used with push-button fittings or with conventional switching handlebar fittings. Even better, the unit is small enough to save space and be installed indiscreetly.

NOTE: Please note this item is nonrefundable upon opening the box.

Features

• 12 inputs/ 10 outputs
• Interchangeable quality cable clamps
• Bluetooth® LE to connect directly to Motogadget’s ‘mo.ride’ app, an app which serves as a unique setup and alarm system.

Smartphone & mo.ride App Features

• Encrypted connection via Bluetooth® LE (Low Energy) for manipulation protection and lower smartphone and m.unit blue energy usage.
• Keyless Go (the on-board electrical system is switched on when you approach the bike with your smartphone).
• Alarm events are sent via Bluetooth® to the App (with date, time, vehicle on the floor etc.).
• Alarm system mode and sensitivity can be adjusted.
• The on board voltage can be monitored in the App.

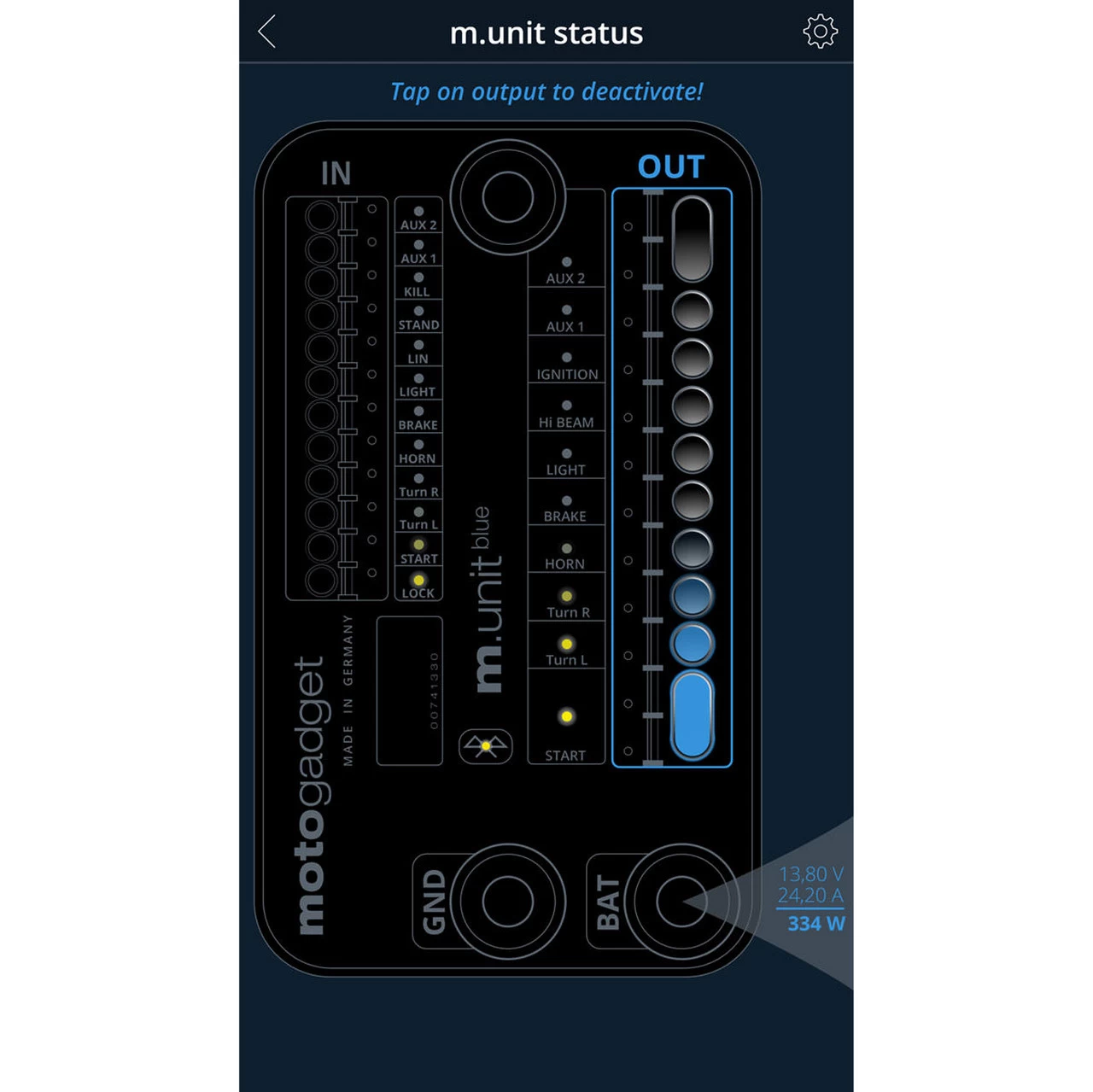

• Diagnostics on all inputs and outputs; current, voltage and device temperature measurement.
• Real-time audio fault messages issued via the helmet headset.

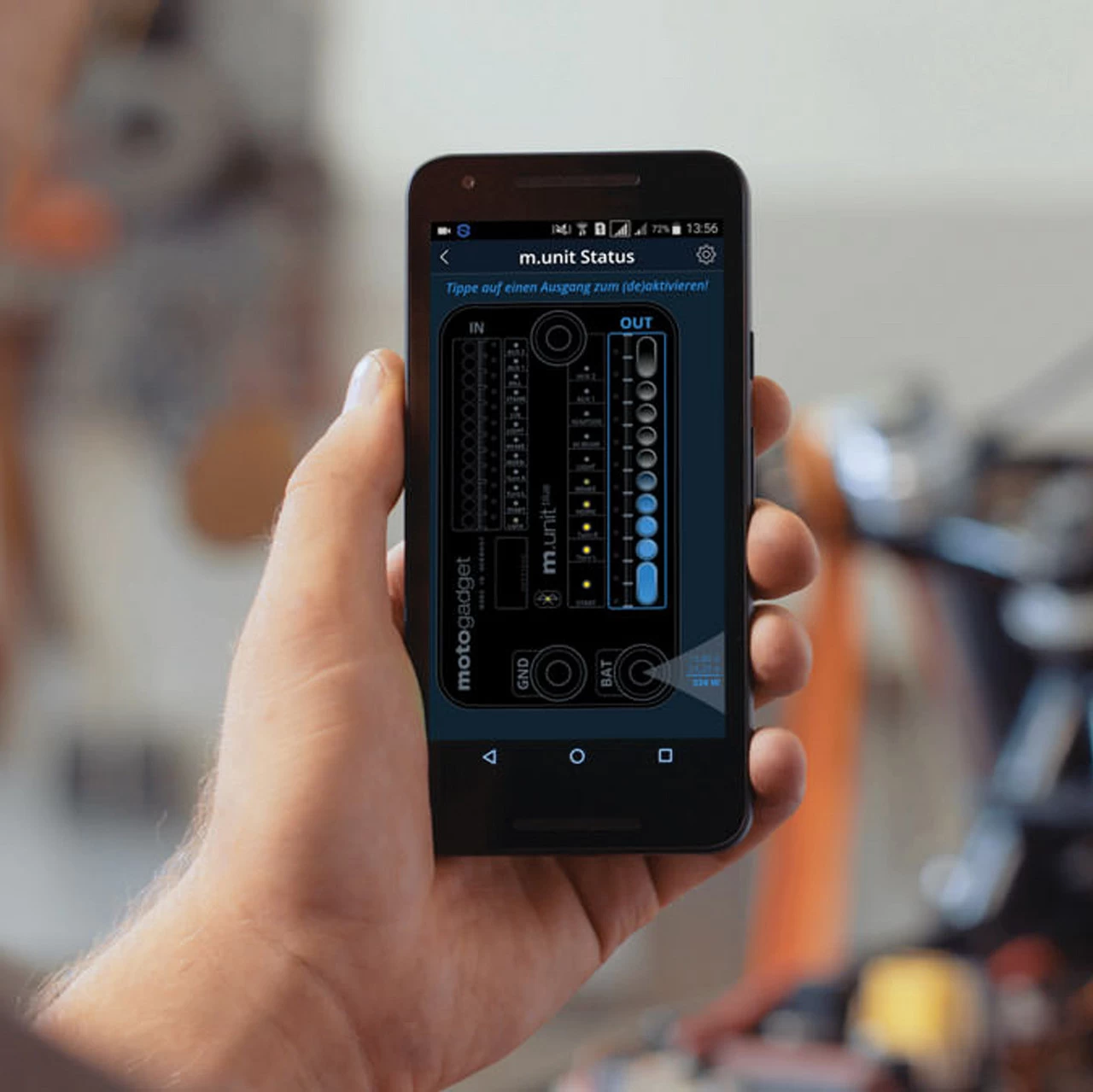

• Outputs can be switched manually via smartphone (except for starter).
• Firmware updates provided anywhere via smartphone and App without removal.
• Setup menu can be configured anywhere via smartphone and App without removal.

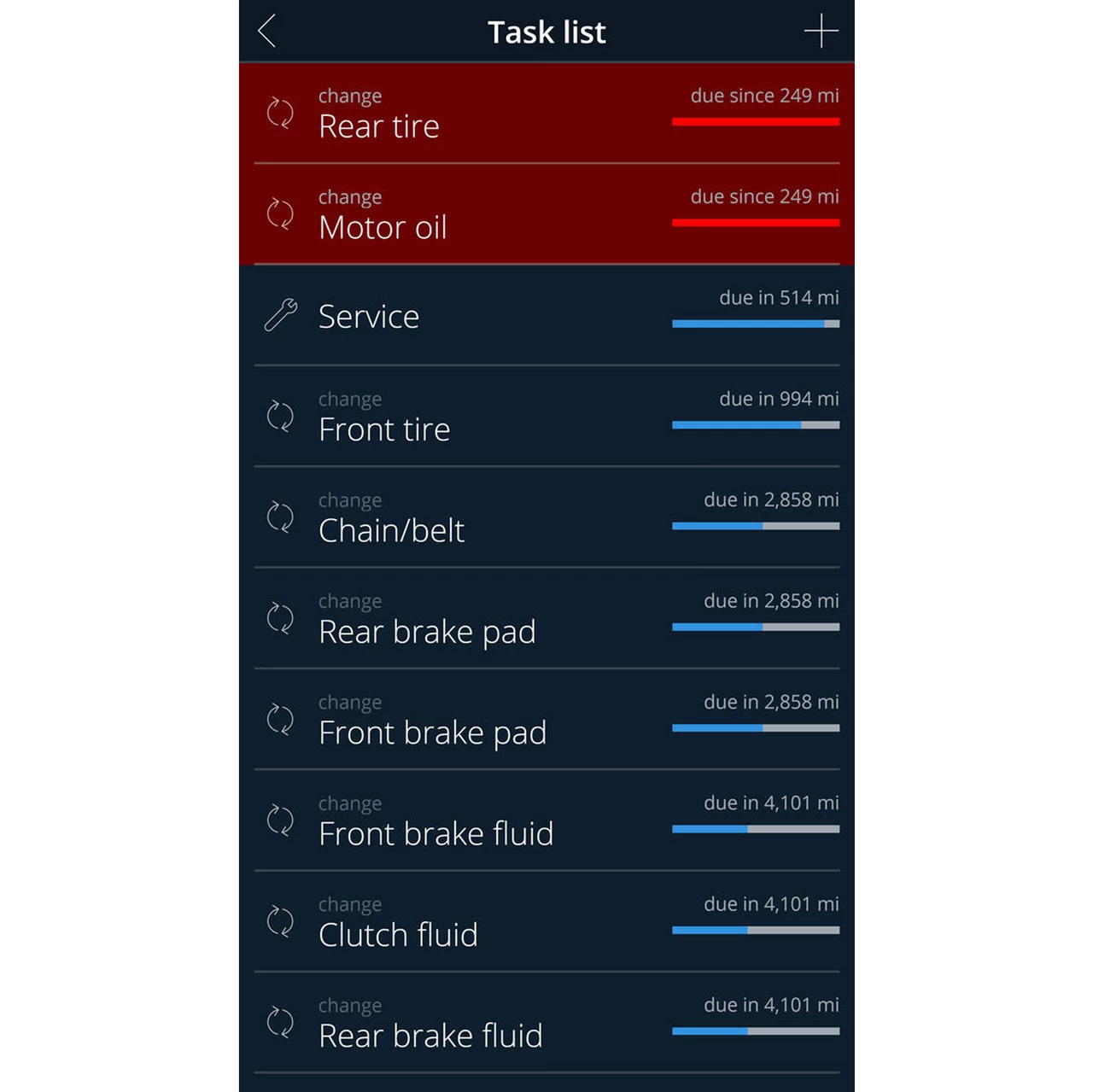

• Speedometer input for comparing the vehicle mileage with mo.ride can be used for vehicle management with automatic alerts for maintenance tasks, the condition of the tires, chain, brake pads, oil, operating fluids, spark plugs etc.

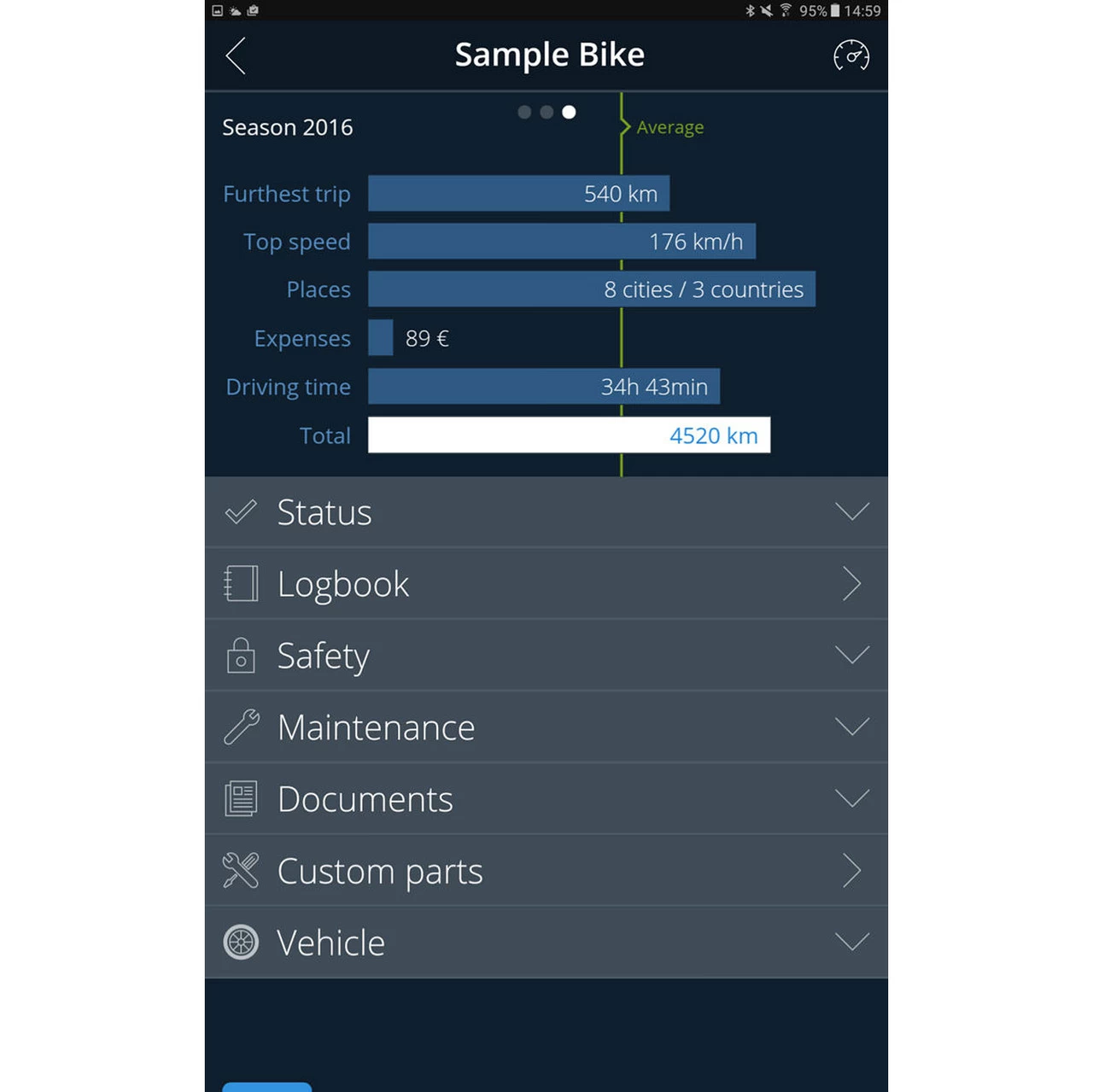

• Logbook for recording journeys and displaying the vehicle status, alarm events and maintenance tasks.
• Parking position display and Ping! for help locating the vehicle.
• LIN bus connection for connecting to compatible motogadget products at a later date.

Includes:

• mo.unit blue
• 2 cable eyes
• 1 x M5 stainless steel bolt
• 2 x M5 stainless steel bolts with hex nuts
• 1 x speed sensor with 2 magnets
• Detailed installation and operating instructions

Dimensions and specifications:

L/W/H: 90 x 53 x 30 mm (3.5″ x 2.1″ x 1.2″)

Inputs:

1 x input (+12V switched) for ignition lock or m.Lock
11 x control pilot inputs (minus/ground, switched) for left turn signal, right turn signal, low beam/high beam, starter, horn, brake light, kill switch, kick stand switch, LIN-Bus, AUX1 and AU

Outputs:

10 x Outputs (+12V) for left turn signal, right turn signal, Lo-beam, Hi-beam, starter, horn, brake light, ignition, AUX1 and AUX2
